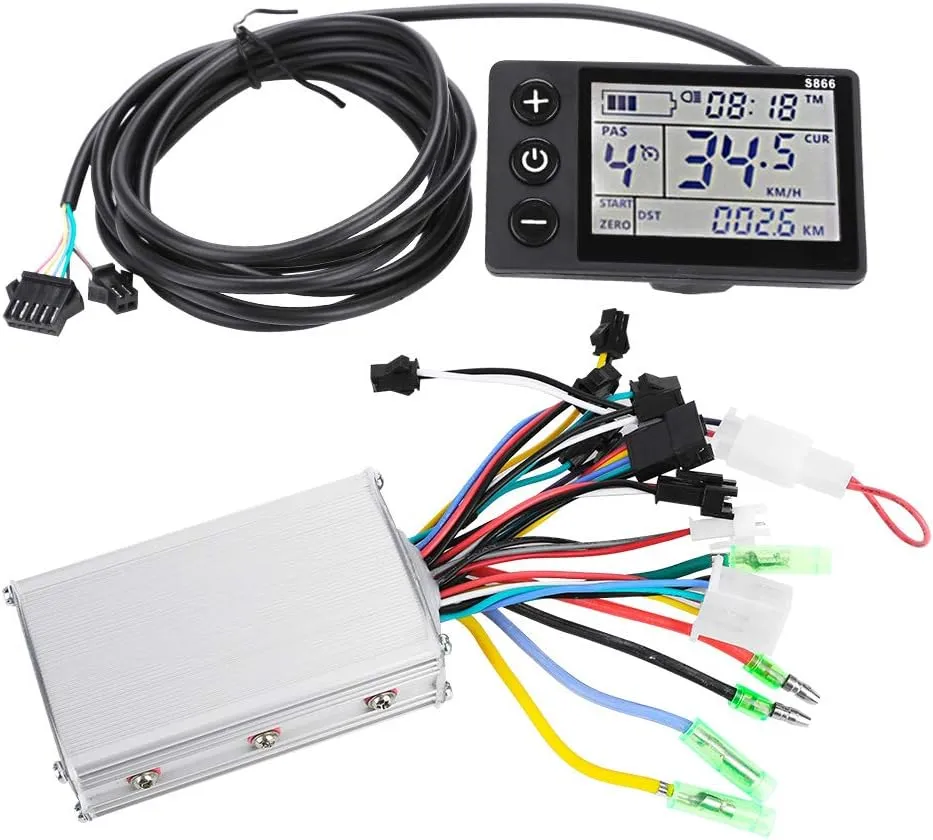

- 【EASY-TO-READ LCD DISPLAY】: The state and data can be clearly showed by the LCD display, backlight enables you to see scree clearly in dim environment, buttons for quick operaton, easy to use
- 【HOW TO USE】: Can set the power‑on password, control the lights, and boost. The vehicle speed is divided into gears, the number of gear positions is 3/5/9 gears optional, and turn the handle can be selected to be divided into gears or not
- 【EASY TO INSTALL】: This electric scooter controller is easy to install and use, comes with mount for LCD display and suitable for 22.5mm handlebar
- 【WIDE APPLICATION】: The brushless motor controller can provide steady speed and sensitive control of braking and direction changes. Suitable for ebike, electric scooters.
- 【STURDY AND LIGHTWEIGHT】: The controller is made by good quality materials with fine craftsmanship, lightweight, waterproof , sturdy and good toughness. The package include LCD display and controller
Features:
The controller is made by good quality materials, lightweight, rainproof, sturdy and
The state and data can be clearly showed by the LCD display, backlight enables you to see scree clearly in dim environment, buttons for quick , easy to use
The scooter controller is brushless type, working silently and sensitive to the state of electric bike
This electric brushless motor controller is easy to install and use, comes with mount for LCD display and suitable for 22.5mm handlebar
The scooter controller is suitable for electric and scooters. The package include LCD display and controller
Specification:
Material: Plastic LCD Metal
Color: Shown as picture
Options: 1#24V-36V; 2#36V-48V
Power: 250W/350W
Low-voltage : 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V
Waterproof: Rainproof
Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch
Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch
Weight: Approx. 332g
Package List:
1 x LCD Display
1 x Controller
Note:
Each cable is labeled with color for different uses.
Red: power positive electrode
Black: power negative electrode
Yellow: power output
Brown: lamp positive electrode
White: lamp negative electrode
Blue: indicator
Green: receive
