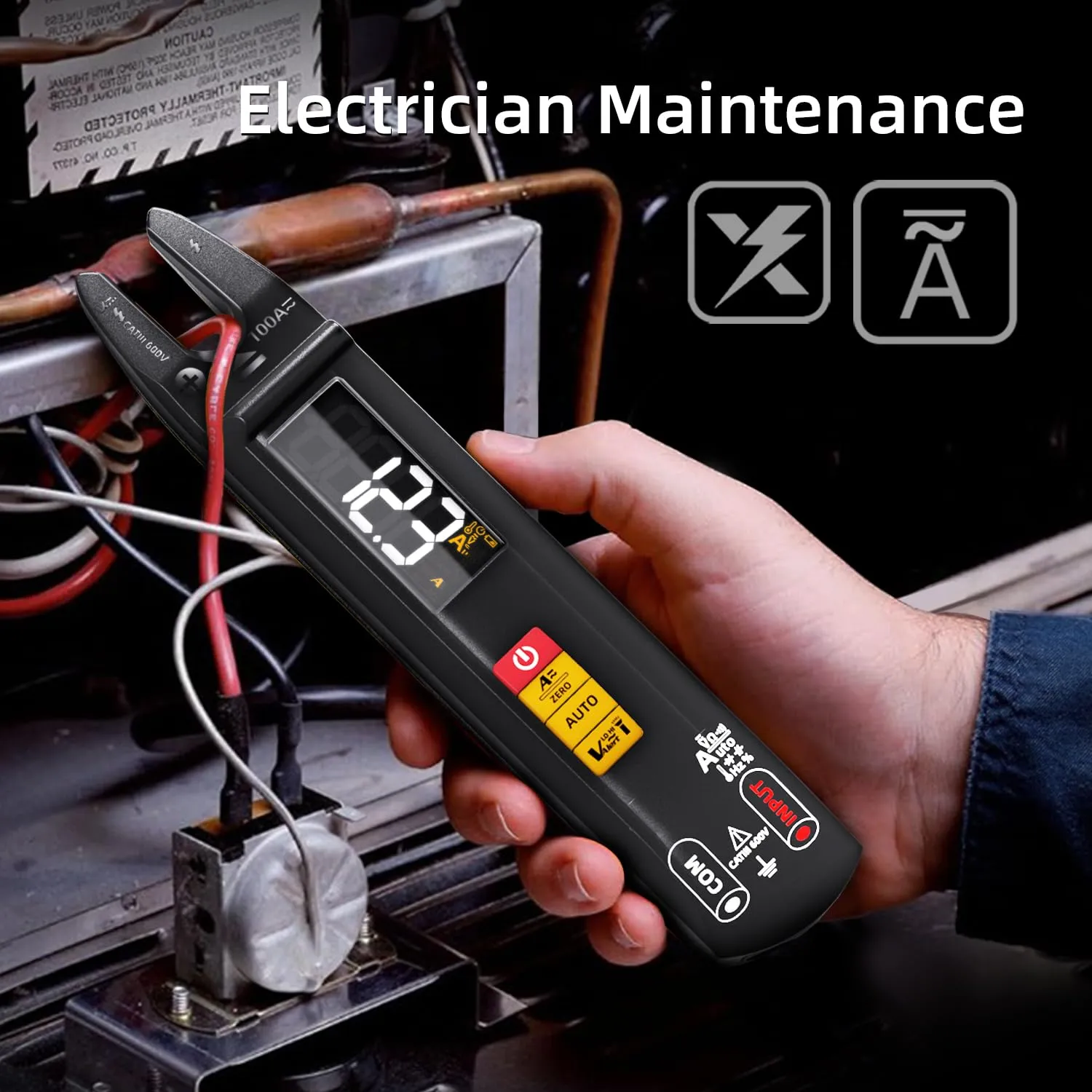

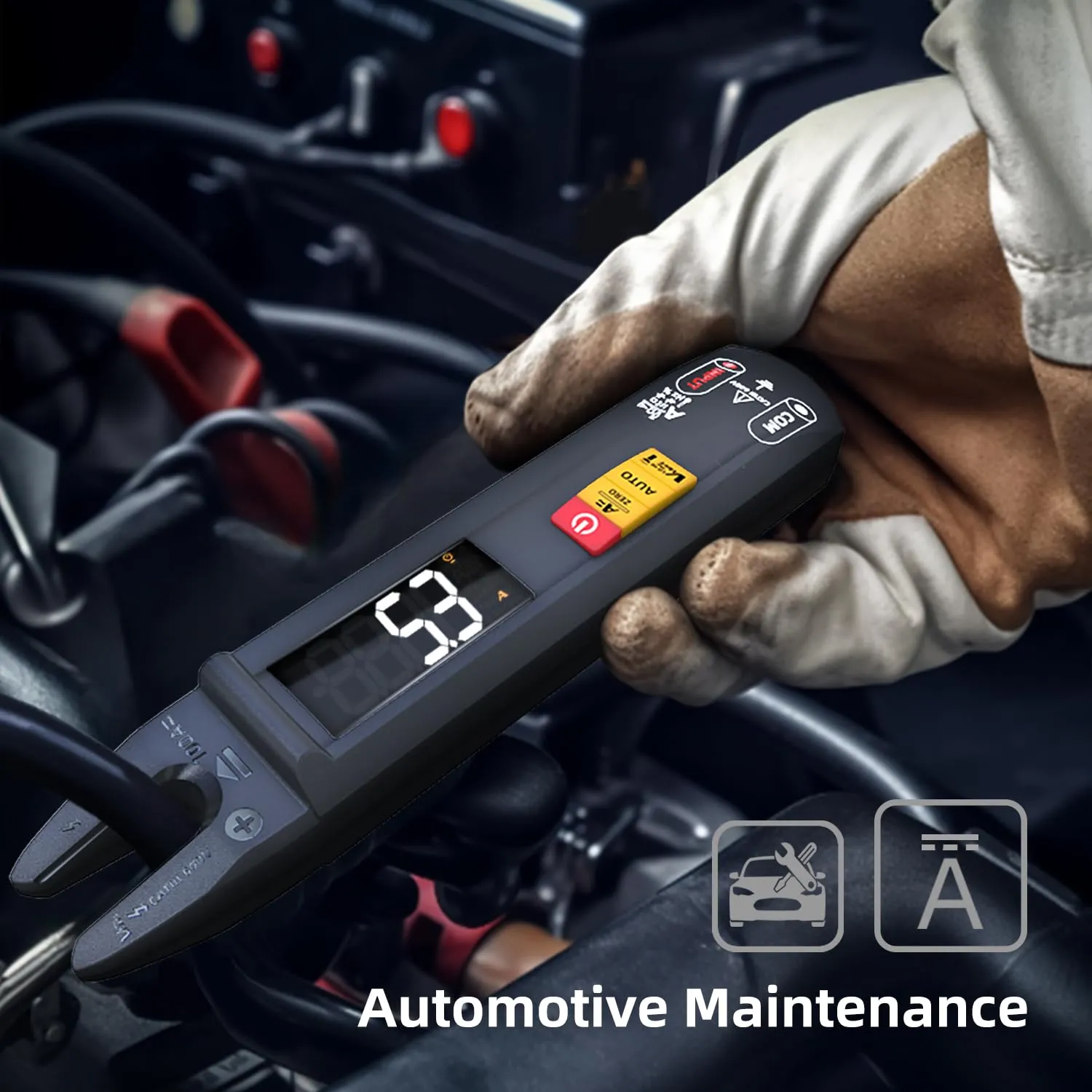

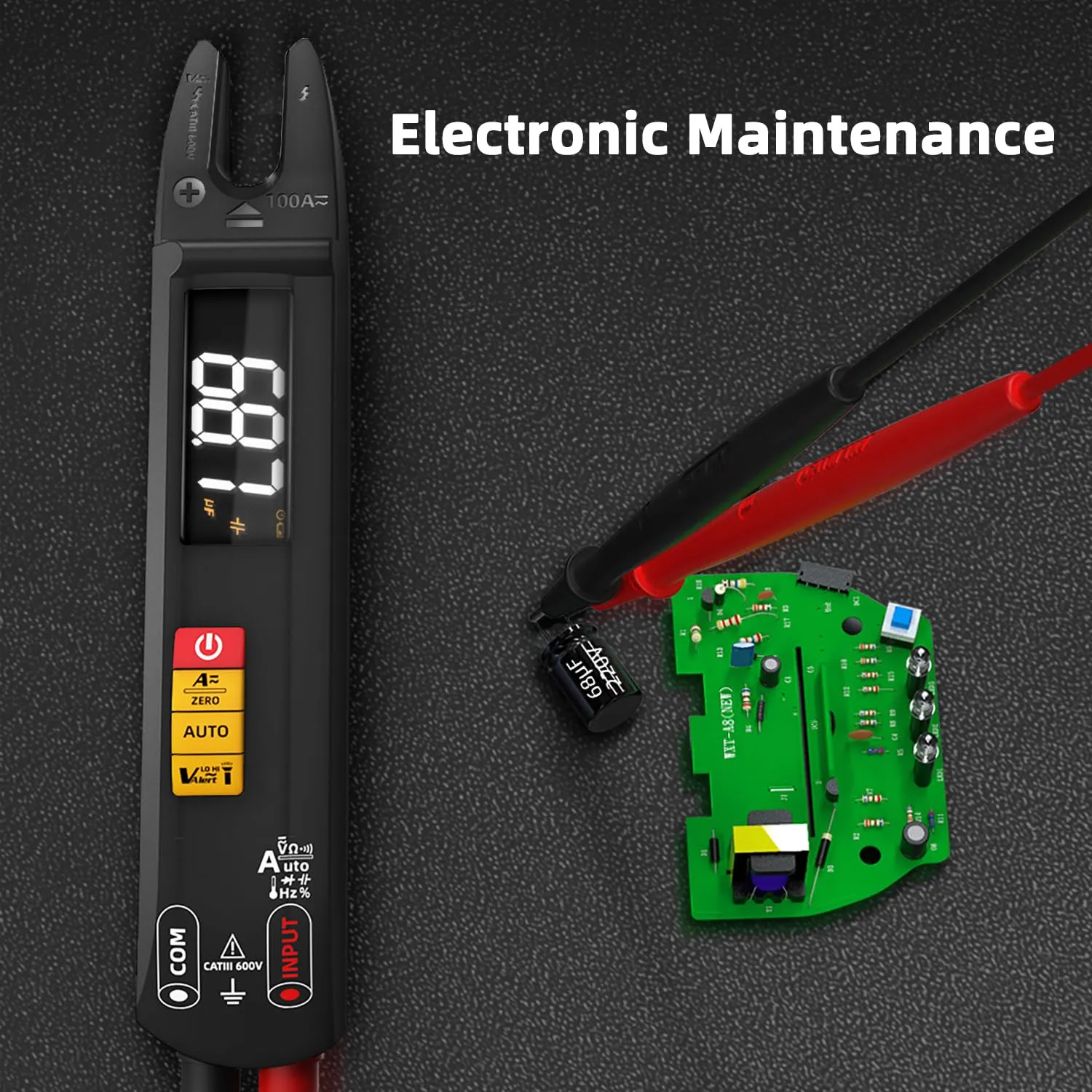

- [Accurate Measurements]: Open jaw clamp meter with TRMS technology ensures precise measurements for ac and dc current, ac and dc voltage, capacitance, diode, duty cycle, resistance, continuity, etc.
- [Smart Mode]: This smart digital multimeter can automatically measure ac and dc voltage, resistance and continuity with the best resolution. All of this functions measurement can be done manually as well.
- [Amp Automatically Identification]: The digital clamp ammeter can automatically measures and identify dc and ac amp with jaw, the measurement can be done manually as well. It support to zero out the readings influenced by earth's magnetic.
- [Professional Voltage Detector]: Digital multimeter tester integrated non-contact voltage tester in the jaw allows for convenient voltage detection.
- [Rechargeable]: DC AC amp clamp meter comes with a rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
Features:
Color lcd digital multimeter
True RMS smart multimeter tester
Open jaw design with rechargeable battery
Professional dc ac current clamp multimeter
Also can be used as a professional voltage tester
Measure capacitance, diode, duty cycle and environment temperature
Measure voltage, resistance, frequency, continuity, v-alert and live wire check
Auto range, Auto power off, low battery indication with flashlight
Specifications:
Display: 6000 counts
DC current: 1-100A 0.1A ±(2.5% 5)
AC current: 1-100A (40-100 Hz) 0.1A ±(2.5% 5)
DC voltage: 0.001-5.999V 0.001 V ±(0.8% 3); 6-59.99V 0.01 V ±(0.8% 3); 60-599.9V 0.1 V ±(1% 5); 600-610V 1 V ±(1% 5)
AC voltage: 0.05-5.999V 0.001 V ±(1% 3); 6-59.99V 0.01 V ±(1% 3); 60-599.9V 0.1 V ±(1.2% 5); 600-610V 1 V ±(1.2% 5)
Resistance:
0.1-599.9Ω 0.1Ω ±(1.2% 3); 0.6K-5.999KΩ 0.001KΩ ±(1.2% 3); 6K-59.99KΩ 0.01KΩ ±(1.2% 3);
60K-599.9KΩ 0.1KΩ ±(1.2% 3); 0.6M-5.999MΩ 0.001MΩ ±(2% 10); 6M-60MΩ 0.01MΩ ±(2% 10);
Capacitance:
0.01µF-5.999µF 0.001µF ±(3.5% 8); 6µF-59.99µF 0.01µF ±(3.5% 8); 60µF-599.9µF 0.1µF ±(3.5% 8);
0.6mF-5.999MF 0.001mF ±(4.5% 10); 6mF-60mF 0.01mF ±(4.5% 10)
Frequency:
1-9.999Hz 0.001Hz ±(2.0% 10); 10-99.99Hz 0.01Hz ±(2.0% 10); 100-999.9Hz 0.1Hz ±(2.0% 10);
1K-9.9KHz 0.001KHz ±(2.5% 12); 10K-99.9KHz 0.01KHz ±(2.5% 12);
100K-999.9KHz 0.1KHz ±(2.5% 12); 1M-9.999MHz 0.001MHz ±(3% 15);
Duty Cycle: 10%-95% 0.1 ±3%
Diode: Measure diodes within 3.0V
Continuity: The beeper sounds when resistance less 50Ω
Temperature: 0-50℃/32℉-122℉ ±2℃/℉
V-Alert: Yes
Live wire check: Yes
Power: rechargeable 3.7 V battery (built-in)
Size: 192 x 36 x 30 mm
Weight: 102 g

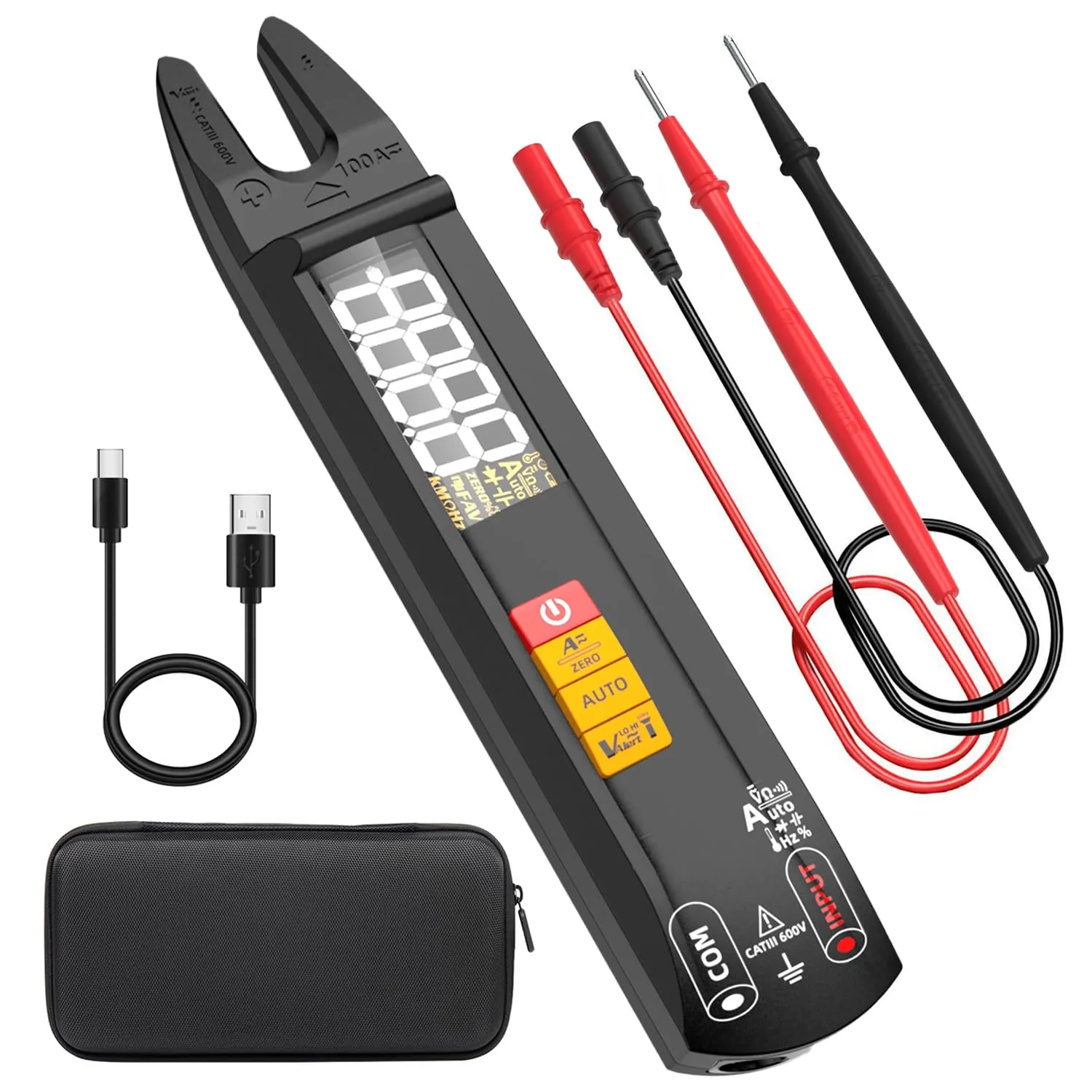

Package Includes:
1 x DC AC Clamp Meter
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x Battery
1 x User Manual
- Product Dimensions : 7.56 x 1.42 x 1.18 inches; 3.6 ounces
- Batteries : 1 Lithium Ion batteries required. (included)
- Date First Available : December 28, 2023
- Manufacturer : BSIDE
